Description:

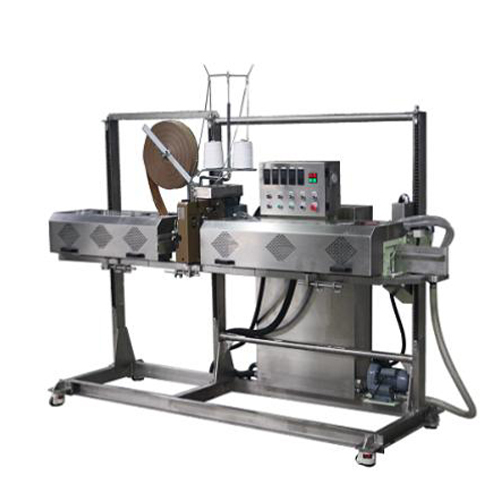

JBF-Z series automatic heavy-duty plastic bags sealing performance quality, and efficient,continuous seal thick PE or PP plastic bags, and paper-plastic composite bags, plastic bags;Can auto complete the process of bag mouth dust removal (Optional),trimming,sewing,tape over-wrapping,heating, pressing and counting.
Applications:
Multi-layer paper bag,Paper PE compound bag,AL-PE inner liner bag or PE bag.etc.Widely used in chemical, pharmaceutical, food industries products bag closing and sealing.
Specifications:
| Model | JBF-ZB |
| Sealing speed | 7-10m/min |
| Machine height to ground | 800-1700mm adjustable |
| Packaging product to bag mouth distance | Min 250mm |
| Air pressure | 0.6Mpa |
| Transmission power | 0.75kw |
| Heating temperature | 0~400℃ |
| Sewing power | 0.4kw |
| Bag mouth cleaning power | 1.5KW(option) |
| Heating power | 6kw |
| Air consumption | 3.5NL/min |
(*) The melting point of the outer bag is 140℃-150℃, and the melting point of the inner bag is 100℃ (the temperature difference between the inner and outer bags is 30-50℃ or more).
Competitive Advantage:
1. Easy to install and simple to maintain.
2. Suitable for various bag specifications.
3. Various models are availbe for different types of bag heating and closing.
4. This unit uses a controller, motor frequency conversion speed controller, and heating system detection device to form the main body of the control system to achieve coordinated control of the entire heat sealing machine.
